A variable-frequency drive can reduce a centrifugal pump's speed when demand falls. It cannot remove the lift between two open water levels. That difference is the first question to settle before accepting a claim such as “20% less speed means almost 50% less power.” The answer depends on the system curve and the hours spent at each duty, not on a pump label alone.
Separate static head from friction head

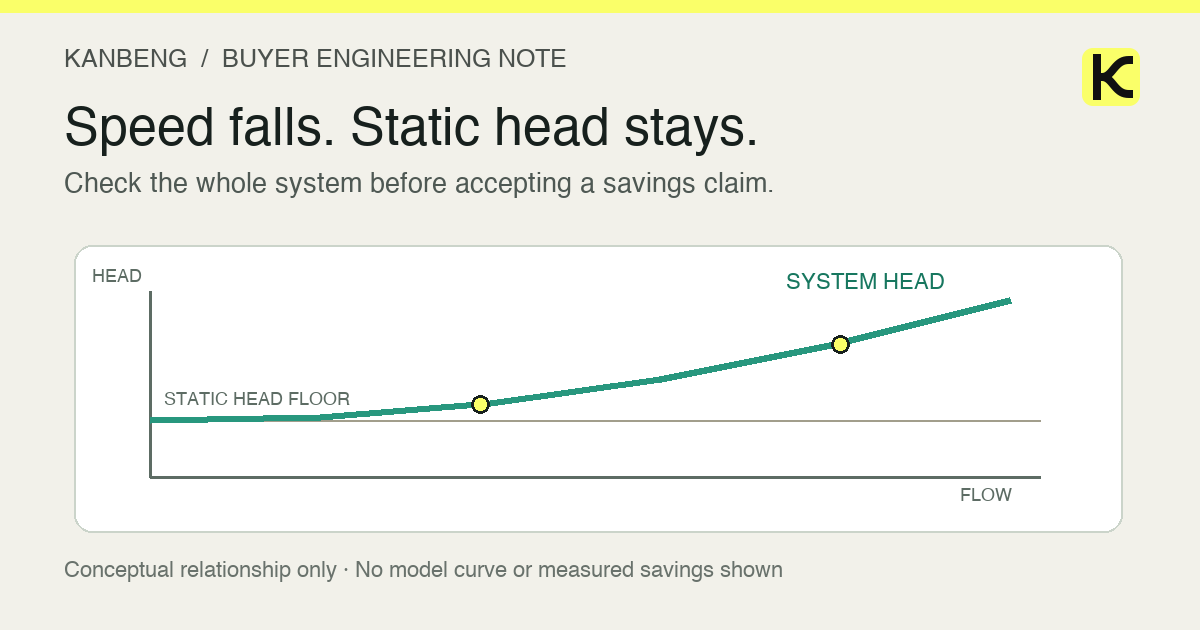

Static head is the elevation or pressure difference that remains even when flow approaches zero. Friction head is the resistance through pipes, bends, valves and equipment, and typically rises roughly with the square of flow in a fixed turbulent-flow system. The required pump head at any operating flow is the sum of these parts. In a closed circulation loop, elevation gained on one side is largely returned on the other; in an open transfer from a lower tank to a higher one, the elevation difference remains.
The pump operates where its head-versus-flow curve crosses the system curve. Slowing a rotodynamic pump moves its curve, so the crossing point changes. The U.S. Department of Energy, Hydraulic Institute and Europump guide Variable Speed Pumping: A Guide to Successful Applications explains why speed control is especially attractive in friction-dominated systems and why high static head changes the result. KSB's pump lexicon likewise distinguishes the pump affinity relationships from the actual operating point on a system curve.
A small example that prevents a large quotation error
Suppose an illustrative clean-water duty needs 40 m of static head and 20 m of friction head at its design flow: 60 m total. If the same piping carries half that flow and the square-law approximation applies, friction head would be about 5 m. The system still requires about 45 m, not 15 m. These are example system numbers, not performance figures for any pump on KanBeng. A bidder must overlay its selected pump curves at the proposed speeds to show that a real operating point exists at both demands.
Do not turn this example into a savings estimate. The familiar affinity relationships describe corresponding points on a centrifugal pump curve under simplifying conditions; they do not say that a high-static-head installation will stay at the same efficiency or even deliver the requested low-flow duty after a speed reduction. The motor, drive and control losses also belong in an energy comparison.
Two existing series to put on the comparison sheet
The LEO LVR vertical multistage series is listed for clean, low-viscosity liquid applications such as pressure boosting, water treatment and cooling-water circulation. Its maker describes a liquid without solid particles or fibres. The CNP CDLF vertical multistage series is a non-self-priming centrifugal design used in water treatment, water supply and other clean-liquid services. These are useful examples of pump families to shortlist, not two interchangeable drive packages.
Neither family name alone proves that a particular motor, impeller, seal and controller combination is suitable for the proposed speed range. Compare the exact offered configurations. The LEO profile and CNP profile show their listed families, while the selection should be based on a manufacturer-issued curve and a stated system duty. Do not infer a drive rating or efficiency from a directory-wide family range.
Ask for two duty points, then ask for the hours
- System curve: provide the highest and lowest suction levels, discharge pressure or elevation, pipe sizes and lengths, key fittings and clean/dirty filter losses. Show the static and friction portions separately.
- Operating envelope: give normal, peak and minimum flows with the hours per year at each. A single peak duty cannot establish annual savings.
- Selected pump: request curves at full and proposed reduced speed for the exact impeller and liquid. Mark the operating points, efficiency, absorbed power and permitted continuous operating region.
- Suction and minimum flow: obtain the available and required NPSH at the limiting suction condition, the maker's minimum continuous flow and the control response when demand falls further.
- Motor and controls: identify the motor's allowed speed and cooling limits, inverter rating, pressure-sensor position, control set point, bypass or standby strategy and any required protection.
- Energy comparison: calculate input energy for the duty-hour profile, including drive losses, against the actual alternative such as throttling or staging. State assumptions and an uncertainty range.
If the supplier can show only a full-speed catalog range, mark the variable-speed claim as unverified and request the specific curves. A broad “energy-saving pump” statement is not a control strategy.
When speed reduction may disappoint
High static head leaves less room to reduce speed before the pump ceases to meet the required transfer. In another installation, a closed-loop circulation duty may have little static head and changing friction demand, making speed control more promising. A low-flow point can also move away from the pump's preferred region; the quotation should state limits rather than hiding them behind a single best-efficiency figure. Check that the reduced-speed operating point still satisfies process pressure, cooling, minimum flow and suction requirements.
Start with the curve-reading guide if the quote gives only a flow and head range. Browse booster-pump records to identify candidate constructions, then send the two duty points and system details in a structured RFQ. The useful output is a comparison of complete offers at your actual duty, not a universal percentage saving.
