Industrial liquid handling & casting · Hexian, Maanshan, Anhui
Sanlian Pump Industry Co., Ltd.
Sanlian’s range spans large water-transfer duties, chemical processes, abrasive slurry and drainage. The useful starting point is the liquid and maintenance arrangement: these duties need different hydraulics, seals and acceptance documents.
- Company name in statutory history
- 安徽三联泵业股份有限公司
- Published location
- Hexian, Maanshan, Anhui, China
- Company history
- 1957 origin; share company registered in 1994
- Manufacturing scope
- Pump design, casting, manufacture and fluid systems
- Procurement distinction
- Complete pump, engineered package or casting component
Choose the liquid duty before choosing the series
These directions are drawn from the current company catalogue. Keep the complete designation on the quotation: a familiar generic pump prefix does not establish that a different Sanlian family has the same design or operating envelope.
| Your liquid-handling task | Published series direction | Information that changes the choice |
|---|---|---|
| Water transfer with accessible maintenance | HSN or HS(V) split-case pumps | Water quality, inlet conditions, duty point, material and seal; clearance to remove the upper casing. |
| A chemical process requiring a defined seal system | ASP5010, ASP5020 or ASP5030/5040 | Chemical composition, concentration, temperature, design pressure, flange class and the specified seal/support system. |
| Transport abrasive slurry | AH or ZS horizontal slurry pumps; SLN mud pumps | Solids concentration, particle distribution, abrasiveness, pipeline duty and seal-water availability. |
| Higher-head water supply or mine drainage | D, MD or MDS multistage directions | Clear water versus mine-water solids; stages, inlet pressure, materials and the selected duty curve. |
| Sewage or sludge removal from a sump | QW or QWN submersible pumps | Fibres, solids and sludge properties, water levels, removal arrangement, cable and control scope. |

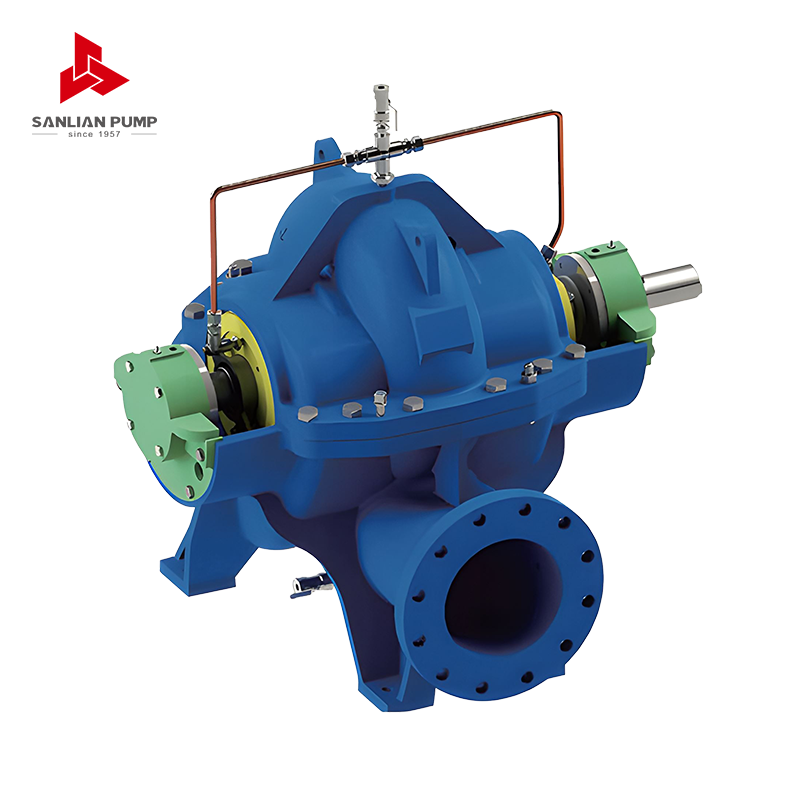

HSN: plan the casing access and material around the water
Sanlian describes HSN as an upper/lower split-casing design with a double-suction impeller and double-volute flow path. Its documentation identifies resin-sand moulding for the casing and a lost-foam process for the impeller. For a pumping station, the maintenance question is practical: can the upper casing and rotating assembly be accessed with the planned lifting equipment while the pipework remains in place?
The HSN page lists family maxima of 4,000 m³/h and 230 m head, and a standard temperature statement of up to 80 °C, with higher temperature to be specified when ordering. These figures are independent family limits, not a single guaranteed operating point. Ask for the selected size’s curve, speed, impeller diameter and temperature rating.
For industrial wastewater or seawater, the source discusses corrosion- or wear-resistant wetted-part options, including a coating or duplex stainless steel. Do not equate that option with every standard HSN pump. Put the actual liquid analysis and component-by-component material schedule into the enquiry, including the seal and fasteners that will contact the liquid.

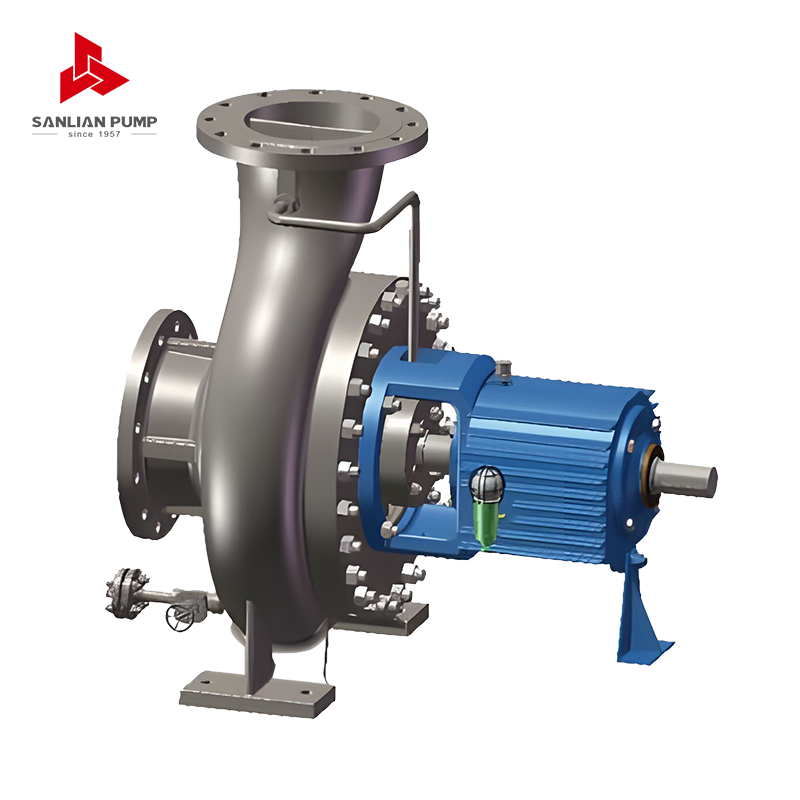

ASP5030/5040: compare pressure, seal and auxiliary scope
The ASP5030/5040 page describes horizontal, single-stage, single-suction, radially split process pumps designed with reference to API 610 and API 682. It discusses an API 682 seal chamber, mechanical-seal options and auxiliary systems, together with bearing lubrication and cooling options. This is a published design statement; it is not evidence of a blanket API certification for the factory or every pump.
A useful distinction in the published envelope is working pressure: up to 2.5 MPa for ASP5030 and 5.0 MPa for ASP5040. State the normal, start-up and shut-off conditions, temperature and required pressure class. Have the supplier confirm the actual size, material, flange and allowable-pressure basis in the quotation rather than treating the maximum family pressure as unconditional.
For a process order, agree the standard edition, departures, seal plan, utilities and test documents. Define whether the motor, coupling, guard, baseplate, seal-support equipment and instrumentation are included. A pump-only price and an installed-package price do not cover the same work; comparing identical scope avoids leaving the auxiliary system until installation.

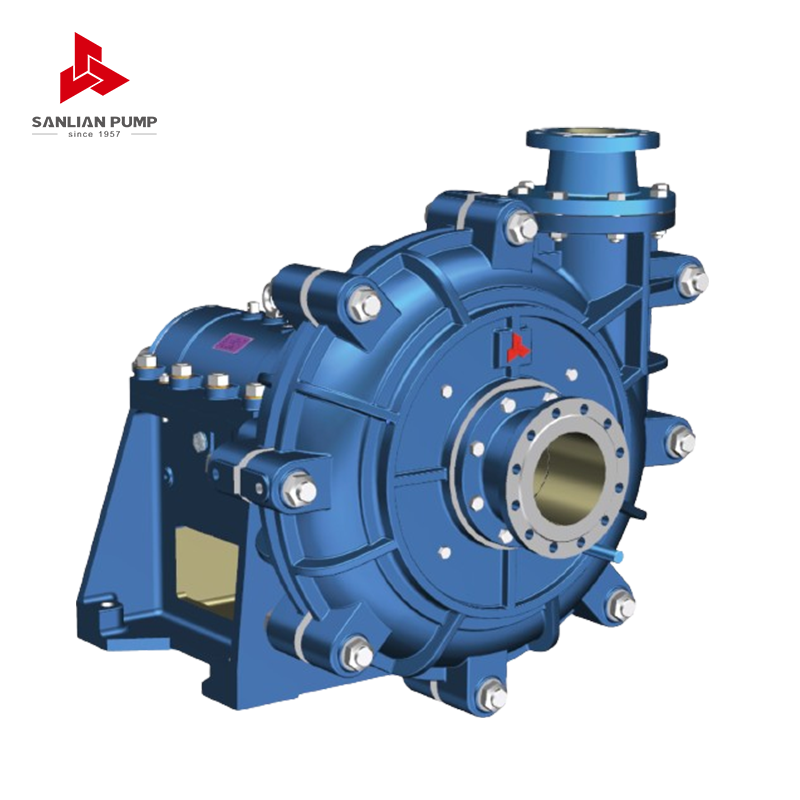

ZS: specify the slurry and the route, not just the water flow
The ZS page describes a horizontal, single-stage, single-suction, cantilevered double-casing pump. It allows the discharge orientation to be changed in 45-degree increments and discusses series pumping for longer pipelines. Those details make the pipe layout, maintenance clearance and pressure along the complete route important parts of a project brief.
Provide solids by mass or volume with the basis clearly stated, density, particle-size distribution and the liquid chemistry. Request the proposed wetted materials and a duty evaluation for that slurry. A clean-water curve alone should not be used to promise abrasive-service performance or a wear life. Specify the operating range and the parts you need to replace without dismantling the whole installation.
The source describes packing and auxiliary-impeller seal arrangements and external clean-water flushing. Ask for the selected seal arrangement’s water pressure, flow, quality and control requirements. The webpage mixes a head label with pressure units in part of its seal-selection text; this profile does not reproduce that ambiguous rule. Obtain a clear engineering selection for the actual inlet and discharge pressures.
Keep multistage mine drainage separate from submerged sewage service
D, MD and MDS have different liquid assumptions
The company’s MD(S) page distinguishes D for clean water or similar liquids, MD as a wear-resistant mining development, and MDS with a double-suction first-stage impeller. It describes MD(S) mine-water service with solids content no greater than 1.5% and particle diameter below 0.5 mm. The concentration basis is not stated on that page: specify it explicitly and obtain confirmation. This envelope should not be reassigned to an unrelated legacy D listing or to coarse abrasive slurry.
QW and QWN require a removal and protection plan
The QW(N) page distinguishes sewage pumps from the QWN sludge-oriented development. It describes automatic coupling/control options, F-class motor insulation, overheat protection and a water-ingress alarm probe in the terminal chamber. For a sump, agree the actual solids/fibres, minimum operating level, cable length, guide-rail arrangement and control panel. A protection feature must be connected and incorporated into the specified operating sequence.
Use the casting and test capability to define your order records
Sanlian’s company material describes an integrated route from research and hydraulic design to casting, manufacture and fluid-system supply. Its research page mentions three-dimensional modelling, hydraulic CFD and casting analysis. Its casting catalogue also offers component work. An impeller or casing enquiry therefore needs a drawing, alloy, machining scope, inspection plan and delivery condition; it is distinct from purchasing an assembled and tested pump.
The test-centre page describes centrifugal and axial-flow testing with automatic controls and references an older GB/T 3216 edition. Translate that into a current order requirement: which pump size and configuration can be tested, at what speed, using which agreed standard edition and acceptance grade? Request the actual test programme and report rather than assuming the site’s general description settles the contract.
Freeze the offered configuration
Record full series and size, impeller/stages, speed, wetted materials, seal system, motor and package accessories. Approve the drawing and interfaces.
Set inspection hold points
Agree material identification, casting inspection, pressure tests and performance checks that apply to the selected order, including reporting and any witness arrangement.
Plan installation and repeat maintenance
Request handling/installation instructions, alignment requirements, seals and wear-part identifiers. Define spare-parts scope and the drawing revision used for repeat orders.
Prepare the brief for the actual industrial service
Liquid & operating point
- Composition, temperature, density, viscosity and chemistry; solids/fibre details and their measurement basis.
- Required flow at total head, operating range, inlet pressure and source water levels.
- For slurry: particle distribution and the pipeline route. For process pumps: normal/start-up/shut-off conditions.
Design & supply scope
- Full proposed designation, materials by component, seal and any seal-water/support system.
- Flanges, piping loads, motor supply, installation drawing and maintenance/lifting clearance.
- Pump only or complete package; baseplate, coupling, guards, controls, cables and other accessories.
Acceptance & delivery
- Standard edition and applicable acceptance grade; curve, material and test-report requirements.
- Inspection or witness points, coating, packaging and traceable batch/unit identification.
- Quantity, destination, delivery target, service information and critical spare parts.
Submit through KanBeng’s enquiry form with this factory named in your request.
Company history and the scope of this research
Sanlian’s current company material places it in Hexian, Maanshan and traces its origins to 1957. The 2013 annual report identifies 安徽三联泵业股份有限公司, gives the same locality and records registration of the share company on 28 June 1994. Its history and legal registration are different milestones. Confirm the supplying legal entity on the purchase order; a group or brand presentation does not define the contracting party.
Reviewed on 8 October 2026 using the current company, product, research and test-centre pages, with historical statutory disclosure for identity and registration. This profile uses current named catalogue directions; it does not relabel older S, IH or ZJ records as HSN, ASP or ZS. Published features are distinguished from KanBeng procurement analysis. Current certificates, delivery and order-specific test results belong in the actual quotation and acceptance package.
