Jiangsu Hongda High Pressure Oil Pump Manufacturing Co., Ltd. 63SCY14-1B
Hongda 63SCY14-1B is a manually variable axial-piston hydraulic pump with nominal displacement of 63 mL/rev and nominal pressure of 31.5 MPa. Its maximum-stroke theoretical flow is 63 L/min at 1,000 r/min.

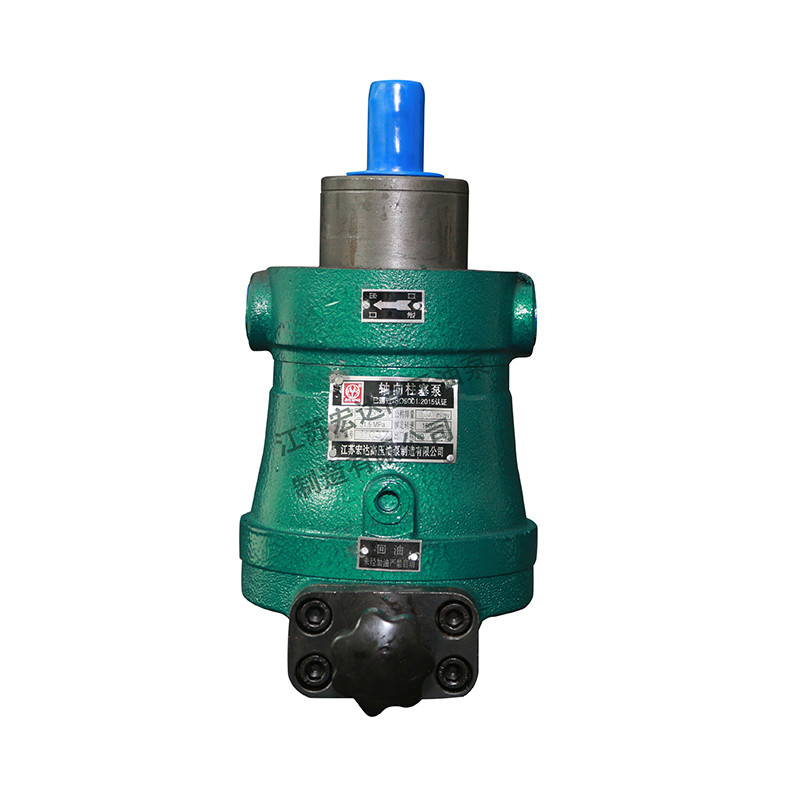

SCY manually variable axial-piston pumps — official family illustration; supplied configuration must be confirmed.
Published specifications
Manufacturer catalog data
Liquid temperature10–65°C
Nominal displacement63 mL/rev
Nominal pressure31.5 MPa
Theoretical full-stroke flow at 1,500 r/min94.5 L/min
Oil gradeN32–46 hydraulic oil
Oil temperature10–65°C
Return filtration15–20 µm
FamilySCY manually variable axial-piston pumps
Pumped mediumHydraulic oil
Product details
Manual swashplate adjustment changes displacement and therefore delivered flow at a given shaft speed. The rotating cylinder block and valve-plate interface use a hydrostatic balancing arrangement described in the product literature. This manually adjusted model should not be substituted for a pressure-compensated control without reviewing the hydraulic circuit.
The performance table also gives 94.5 L/min at 1,500 r/min at full displacement. These are theoretical displacement-based flows; actual delivery depends on operating pressure, oil condition and leakage. The source specifies N32–46 hydraulic oil, a 10–65°C oil temperature range and 15–20 micrometre return filtration, together with a separate case-drain arrangement.
SELECTION NOTES
Specify the operating duty
Provide pressure cycle, shaft speed, required adjustment range and hydraulic oil. Confirm rotation, shaft coupling, suction conditions, filtration and separate case-drain routing.
Published limits may describe different configurations within a series. Confirm that the required operating conditions are valid together.
