Product details

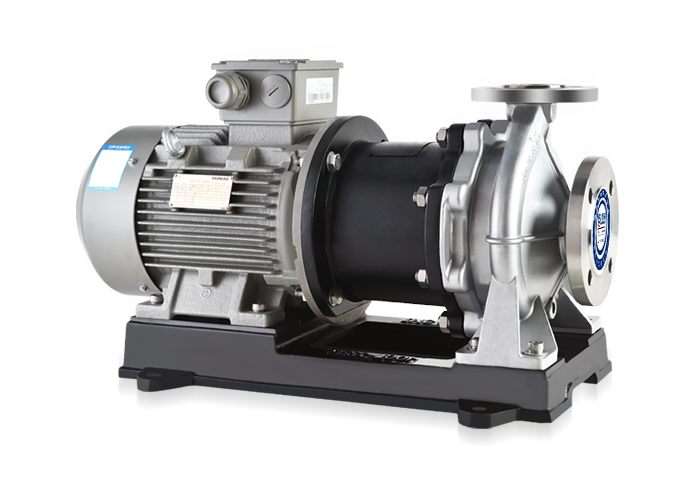

The casing is described as a radially split volute with axial suction, radial discharge and foot mounting. Its back-pull-out construction supports access to the rotating assembly. The installation drawing and coupling arrangement should be checked for service clearance before the piping layout is finalized.
The magnetic coupling transmits torque across a static containment boundary. Bainuo lists stainless grades including 304, 304L, 316 and 316L, with selection according to corrosion conditions. The stated liquid restrictions exclude hard particles, fibres and magnetic material; these restrictions remain relevant even when the bulk liquid is chemically compatible.
The source’s hydraulic table repeats model labels and does not reliably identify a complete set of distinct selections. This page therefore uses the clear operating conditions and construction description, without assigning ambiguous flow or head values. Request a specific IMC-P size and curve for the duty; separate high-temperature IMC-G data is not part of this profile.
