Hanna QBY-50 is an air-operated diaphragm-pump selection with a catalog water-test flow range of 0–12 m³/h. The table lists a 50 mm flanged connection and a maximum permitted particle diameter of 8 mm.

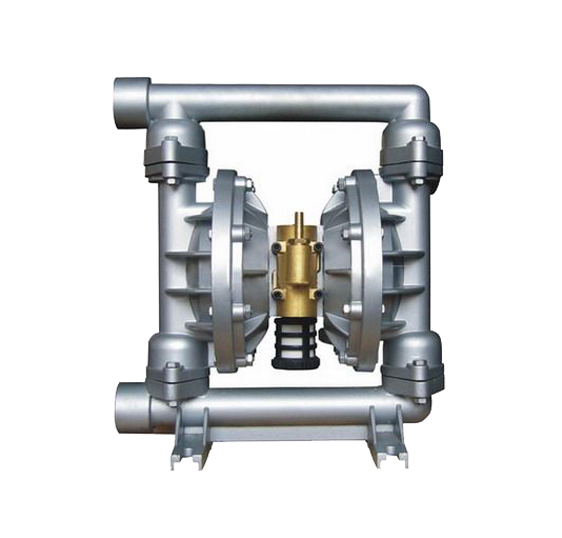

QBY air-operated diaphragm pumps — official family illustration; supplied configuration must be confirmed.
Published specifications
Manufacturer catalog data
Catalog water-test flow0–12 m³/h
Listed discharge pressure6 bar
Maximum air supply pressure7 bar
Catalog suction lift5 m
Permitted particle diameter8 mm
Maximum air consumption0.9 m³/min
Flanged connection50 mm
FamilyQBY air-operated diaphragm pumps
Product details
Compressed air drives the reciprocating diaphragms, with liquid delivery responding to air supply and discharge backpressure. The absence of a rotating shaft seal is a construction feature, while diaphragm, valve and body materials still determine suitability for the process liquid. Available body materials across the family include metal and plastic options.
For QBY-50, the table lists 6 bar discharge pressure, 7 bar maximum air supply, 5 m suction lift and maximum air consumption of 0.9 m³/min. These water-test limits are not all achieved simultaneously. Viscous liquids and suction losses change delivery, so compressed-air capacity and a duty-specific curve are part of the selection.
SELECTION NOTES
Specify the operating duty
Provide liquid composition, viscosity, temperature, solids size, flow and discharge pressure. Confirm diaphragm and valve materials, suction conditions and available compressed-air pressure and capacity.
Published limits may describe different configurations within a series. Confirm that the required operating conditions are valid together.
