Product details
The same table gives 33.69 A rated current, an 80 mm outlet and a maximum radial down-well dimension of 236 mm. The radial dimension is particularly useful when checking bore clearance; it is not the recommended bore diameter or a substitute for the installation drawing.
The pump and submerged motor form a coaxial assembly. A complete well installation also needs a suitable rising main, electrical cable, support and control equipment. The content and dimensions of that package depend on well depth, drawdown and the selected installation rather than on the model number alone.

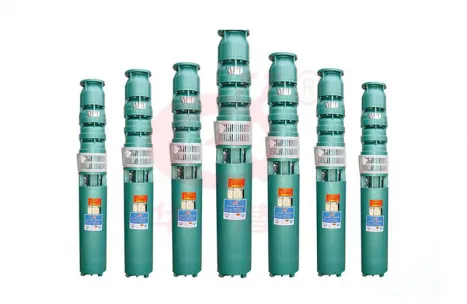

The photograph shows the manufacturer’s 250-series lineup, not a dimensional representation of one 250QJ32-100 unit. The values on this page come from the first identified performance row. Confirm the duty curve, minimum operating water level, water quality, cable length and motor-protection settings before finalizing the well assembly.
