Peiyuan 100WQ50-10-3 is a submersible sewage-pump selection delivering 50 m³/h at 10 m head with a 3 kW motor. Its performance row lists a 100 mm outlet and 2,860 r/min speed.

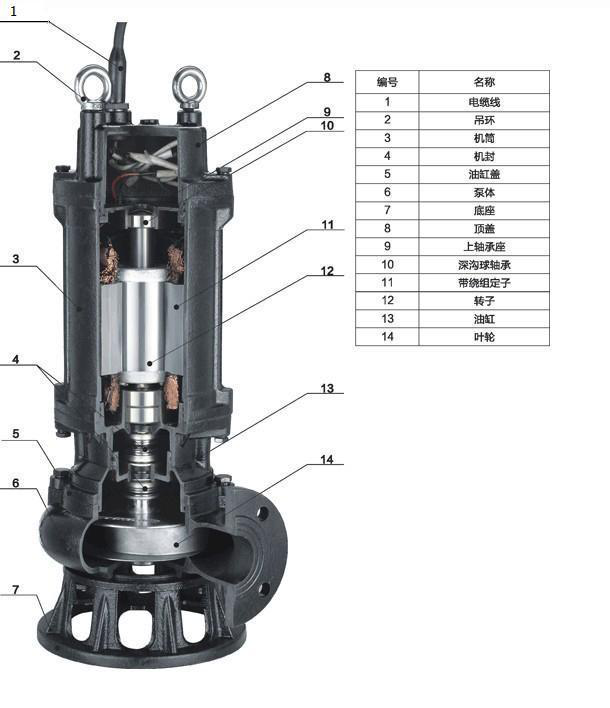

WQ fixed-installation sewage pumps — official family illustration; supplied configuration must be confirmed.
Published specifications
Manufacturer catalog data
Flow range50 m³/h
Head range10 m
Motor power3.00 kW
Outlet100 mm
Speed2,860 r/min
Catalog weight60 kg
Service arrangementFixed installation with optional guide-rail coupling
FamilyWQ fixed-installation sewage pumps
Product details
The WQ fixed-installation arrangement is intended for sewage pits where the pump can be lowered onto an automatic coupling and retrieved along guide rails. This service arrangement helps define lifting clearance, rail length and the discharge connection before the wet well is constructed.
The product description includes leakage detection, winding temperature monitoring and optional float or control-cabinet operation. These items need to be included explicitly in the supply scope. This WQ selection is kept separate from the factory’s WQP stainless-steel range; stainless material grades must not be inferred from the similar model lettering.
SELECTION NOTES
Specify the operating duty
Provide flow, head, sewage composition, solids passage requirement and wet-well dimensions. Confirm wetted materials, guide rails, lifting chain, cable length, level controls and protection devices.
Published limits may describe different configurations within a series. Confirm that the required operating conditions are valid together.
