Runjin WQ is a submersible sewage-pump family for municipal or industrial wastewater containing solids and fibrous material. Its published envelope is 5–4,700 m³/h flow and 1–150 m head across different selections.

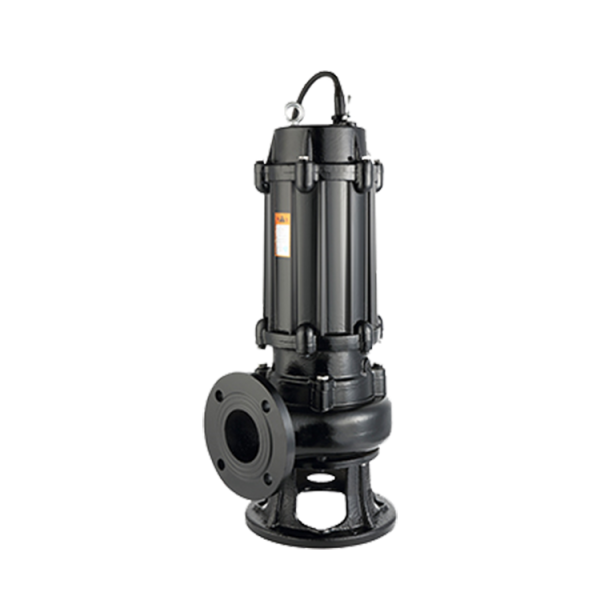

WQ submersible sewage pumps — official family illustration; supplied configuration must be confirmed.
Published specifications
Manufacturer catalog data
Liquid temperature≤60°C
Family flow range5–4,700 m³/h
Family head range1–150 m
Family motor range3–550 kW
Medium temperature≤60°C
Installation optionsGuide-rail coupling or mobile free-standing
FamilyWQ submersible sewage pumps
Product details
The product description specifies single- or double-channel impeller arrangements and mechanical seals separated by an oil chamber. A leakage sensor and winding thermal elements support motor protection. Actual permissible solids and fibre loading depend on the chosen hydraulic size and should be verified for the waste stream.
Fixed installations can use a twin-guide-rail automatic coupling system; mobile installations use a free-standing arrangement. Float control and a protective control cabinet are options to define in the package. The source lists a medium temperature ceiling of 60°C, but the final motor duty and cooling conditions still need checking against wet-well operating levels.
SELECTION NOTES
Specify the operating duty
Provide wastewater composition, largest solids, fibre content, flow, head, pit dimensions and start/stop levels. Confirm impeller passage, coupling arrangement, control cabinet and motor protection.
Published limits may describe different configurations within a series. Confirm that the required operating conditions are valid together.
