PUMP SERIES

Dongguan Subao Pump Co., Ltd. SDK

Dongguan Subao’s SDK self-priming pump is listed in PVDF for chemical-liquid transfer. The source specifies 185–800 L/min, converted here to 11.1–48 m³/h.

Request matching quotes

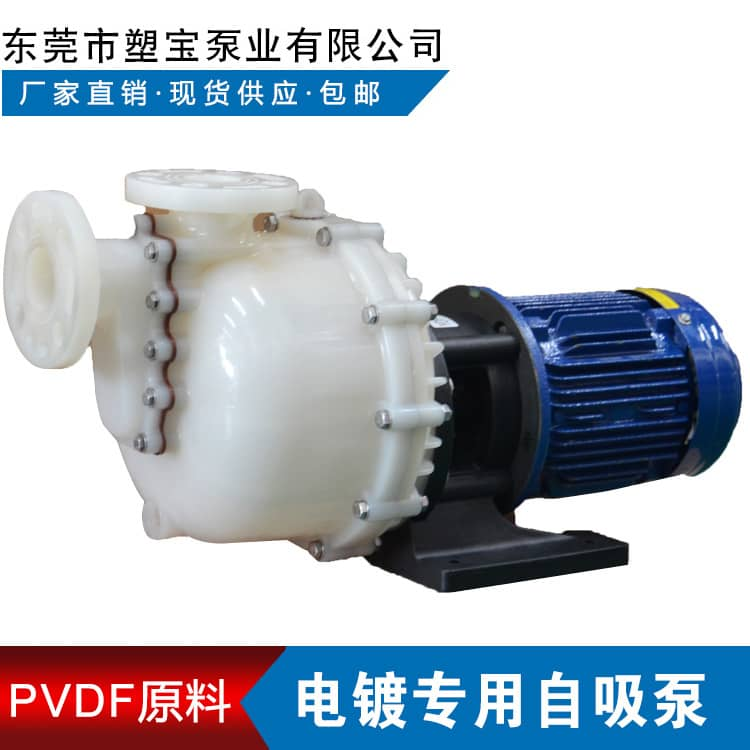

Dongguan Subao Pump Co., Ltd. SDK — manufacturer product photograph — Manufacturer catalog photograph for SDK. Product configuration varies by model.

Published specifications

Manufacturer catalog data

Flow range11.1–48 m³/h

Head range7–27 m

Motor power range0.37–3.68 kW

Liquid temperature0–90 °C

FamilySDK PVDF self-priming

InstallationSelf-priming

Materials offeredPVDF

Product details

Conversion: L/min × 0.06 = m³/h. The source identifies plating, coating, wastewater and chemical-process applications; compatibility must be checked for the actual liquid.

SELECTION NOTES

Specify the operating duty

Confirm the exact SDK configuration, operating point, speed, material and seal against the manufacturer-issued technical document.

Published series limits describe different configurations. Maximum flow and maximum head are not a single guaranteed operating point.
